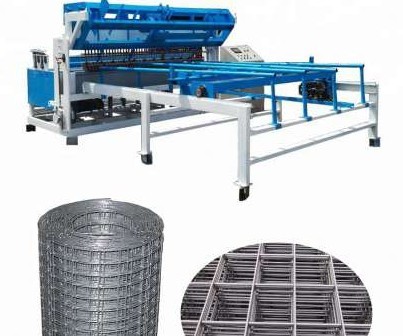

Fully Automatic Welded Mesh Machine 61 Welding Electronics Diam 2.5
- 4.5 MM Wire
Our full set of welded mesh machine including the below parts:
1. Wire holder
2. Wire straight parts
3. Wire Mesh Flat parts
4. Wire feeder parts
5. Welded mesh parts
6. Drag Mesh Trolley Parts
7. Automatic falling down mesh parts
Detail technical specification:
| Wire diameter | 2.5-4.0mm |
| Width of mesh | 1200-2500mm |
| Weft wire distance | 25-200mm |
| Warp wire distance | 50-200mm |
| Welding frequency | 40-60 times/min |
| Weight | 3.5-5 tons |
| Rated Voltage | 380/420V |
| Need worker | 2-3 person |
| Warp wire | Line disc |
| Weft wire | straightened cut wire |
| Welding points | 12-32 points |
Performance characteristics:
1. Controlled by computer, the welding current and welding time in
each welding transformer can be individually adjusted. The machine
operator interface with color touch screen and control buttons,
easy to operate.
2. Host framework structure, stable performance, the welding
pressure is continuously adjustable, solid and perfect welding
spot.
3. Integrated deceleration electromagnetic brake motors for power,
inverter control, adjustable speed.
4. Modular design for the upper and lower electrodes, convenient to
adjust the mesh.
5. weft-hopper obtains wires by motor driver devices, electric
magnetic increase feeding device auto-feeding the wefts into the
preparation area of disc device from the large hopper, and the weft
hopper is installed in the removable pull rid, convenient to adjust
and maintain.
6. The mesh pulling part driven by servo motor can be set a variety
of weft space in the same mesh, pull the mesh continuously back and
forth to extend the size of mesh, and use pneumatic clamping device
to accurate weft spacing.
7. The warp feeding part driven by stepper motor can be fed the
warps which a whole mesh needs when welding, so that the machine is
very short interval of time.
8. Automatic CNC steel mesh welding machine is equipped with a mesh
roller frame and removable warp frame.
Q: What's the machine price?
A: We need to know your wire diameter, mesh hole size and mesh
width, then we can quote you accurate price based on your
requirement.
Q: What's the production capacity?
A: One day (8 hours) can produce 400-500pcs fence panels.
Q: Can you make voltage according to my requirement?
A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.
Q: What's the payment terms?
A: 30% T/T in advance, 70% T/T before shipment, or 70% against
irrevocable L/C at sight, or cash etc.
It is negotiationable.
Q: How to install the machines?
A: We'll provide you with a one-year warranty and send someone over
anytime.
