    Automatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZ

    Ask Lasest Price
    Brand Name : BC
    Model Number : BC09
    Certification : ISO
    Price : $9000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 12 sets per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Automatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZ

    For long video please feel free to contact us

    Our Advantages:


    1. We have more than 12 years of experience producing chain link machine. The machine can running very well.
    2. You can use our machine directly once you get electricity. No need to connect wires or adjust the machine. Which can save your time and overseas service cost.
    3. We use Servo Motor on the machine. As result, the machine can running very fast and lso you can adjust many things through the PLC.
    4. We using big and thick frame tube on the machine. Moveover, E-coating will be used as the machine surface finish. As a result, the machine produced by us is very strong and realy beautiful.
    5. Two set mold for free.
    6. Mechanical automatic roll wire mesh.
    7. The wire mesh width is adjusted automaticlly.
    8. The machine is controlled by the touch screen.

    Welcome you to contact us to get our machine photoes or videos.


    Single wire chain link fence machine with compact roll

    Automatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZ


    Single Wire Chain Link Machine doesn't have any requirement for wire.Any kind of wire wire can be used.When there is a change in mesh during production process,the adjustments made are only adjustments to this wire, without worrying about other wires.Moreover, our machine adjustment is electric adjustment. Pressing the button lightly will automatically adjust the machine. Skilled workers can complete the machine without stoping,without affecting the normal production of the machine. Convenient and practial and low labor intensity, saving time and energy and high work efficiency.


    Details:


    Automatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZ


    Chain Link Machine can weave metal of various kinds materials.
    Its raw material are mostly low carbon steel wire, stainless steel wire,
    aluminum alloy wire,galvanized wire, 65 Mn steel wire, PVC coated wire, etc.


    Single Wire Chain Link Machine

    Maximum Diameter4.0mm
    Minimum Diameter1.2mm
    Maxmum Mesh Size100×100mm
    Minimum Mesh Size20×20mm
    Machine Width2m-4m
    Volts Power220V,380V,415V,440V,etc
    According to your requirement
    Hz Power50Hz,60Hz,etc
    According to your requiement
    Mesh EdgeOver lock or twist
    Total Power6.5kw



    Edge:


    Automatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZ

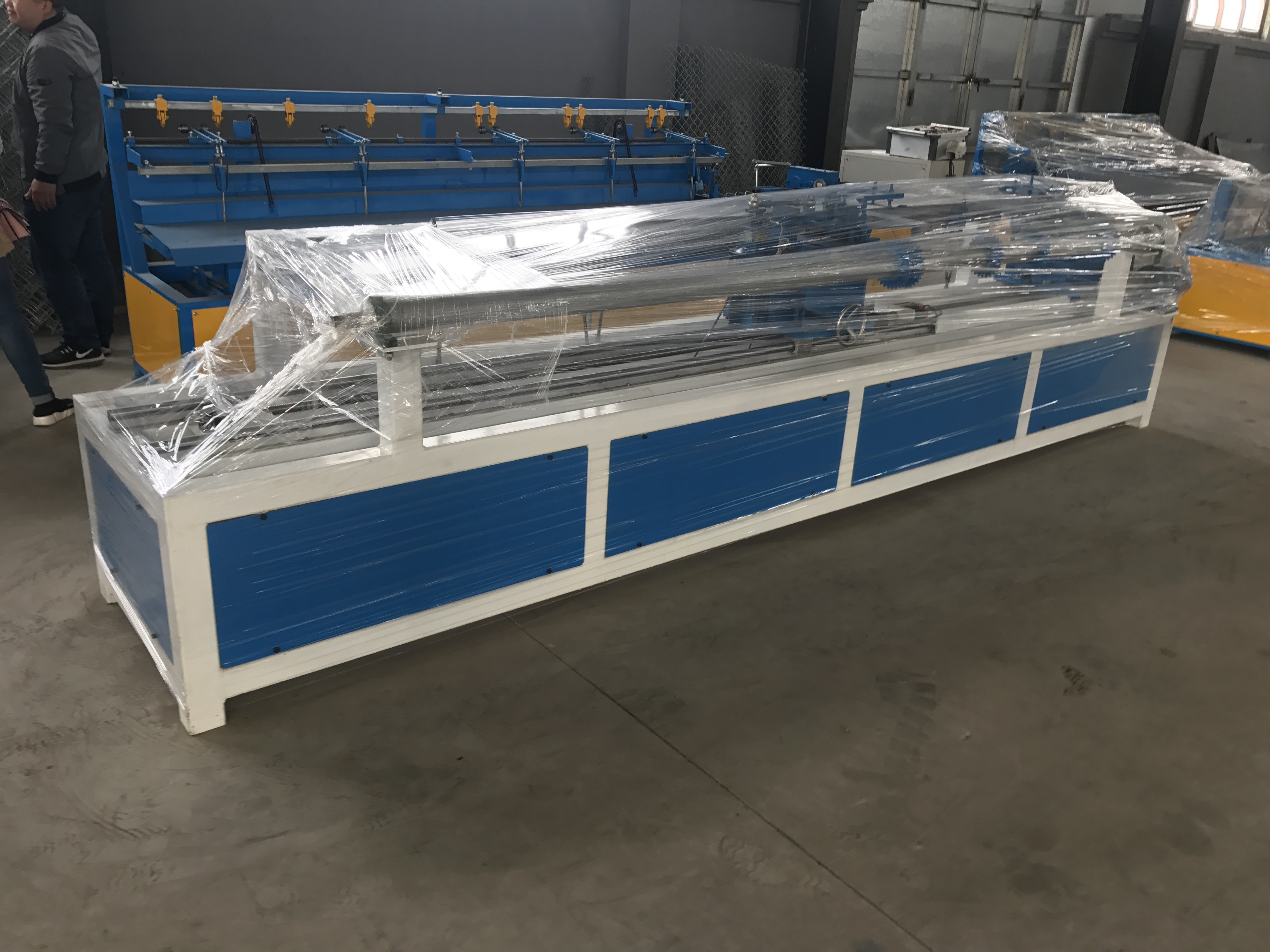

    Packing:


    Automatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZAutomatic Single Wire Mesh Machine , Chain Link Fence Equipment 380V/50HZ
