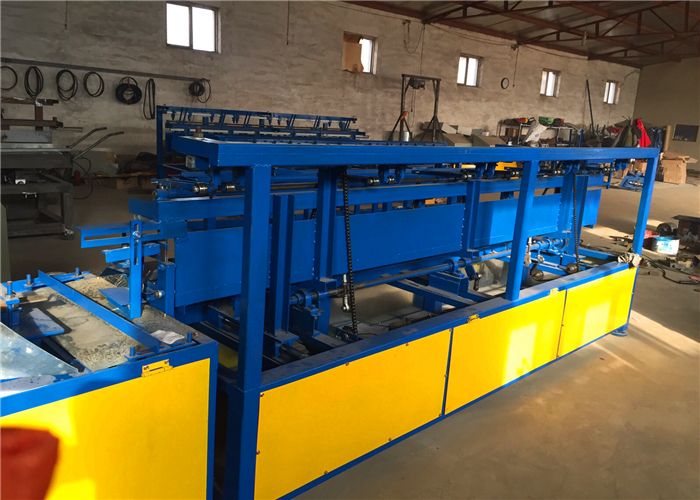

Suitable for Various Kinds of Wire Fully Automatic Diamond Wire
Mesh Making Machinary / Chain Link Fence Making Machine
Introduction:
This machine is used to produce high quality chain link fence. High
automatic high technology, high efficiency.
Features:
1. This machine adopts PLC (programmable logic controller).
Controlling the wire feeding, chain making and chain link fence
weaving.
2. Machine adopts 2 feeding wire methods to weave the mesh, high
weaving speed with high quality.
3. Reasonable designing, touch screen controller, complete wire
feeding, wire cutting, mesh conveying and edge finished totally
automatic.
4. Main components used in the machine such as single-chip computer
and hydraulic system are of famous brand and excellent quality.
Suitable wire to the machine:
High-quality low carbon steel wire, Galvanized steel wire,Stainless
steel wire, Aluminum alloy wire, Aluminum-clad steel wire.
Technical Parameters
| Product Name | Automatic Chain Link Fence Machine |
| Function | Chain Link Fencing is extensively used as fences for playground and
gardens, super highway, railway, airport, port, residence, etc. |
| Wire Diameter(mm) | 1.4-4.0mm Feeding Wire numbers:two(Note:Steel Wire
Standard:GB3081-82) |
| Mesh Size(mm) | 25x25-100x100 |
| Netting width(mm) | 600--4000 |
| Capacity(m2/hour) | 60-120 |
| Rated Voltage | 380V,50HZ |
| Motor Power | 9.0KW |
| Weight (T) | 4.2 |
| Outside Size | 7000*1430* 1800mm, 5000*1700* 1250mm |
| Advantage | Automatic edge wrap and rolling, easy handle |
| Accessories | Operation tools 1 set Operation manual 1PCS Operation CD video 1PCS |
Competitive Advantage:
1. We have more than 12 years of experience producing chain link
machine. The machine can running very well.
2. You can use our machine directly once you get electricity. No
need to connect wires or adjust the machine. Which can save your
time and overseas service cost.
3. We use Servo Motor on the machine. As result, the machine can
running very fast and lso you can adjust many things through the
PLC.
FAQ:
Q1:Your price is too high, could you give me some discounts?
A:1.If you take the quality into account, you will find our price
is reasonable.
2.If your order is big enough, we will give you some discounts,
say,5% discount.
3.In order to establish long-term trade relations with you, we are
willing to make a concession give you 5% discount.
Q2:What kind of quality control do you have?
A:All products have go though 4 checks during the production
process and have to pass strict inspection before they go out.
Besides, we set up our quality control department.
Q3:What’s your terms of packaging?
A:1.Wrapped with waterproof paper, with metal or wood pallet
2.Standard in pallet and plastic film or according to customers’
requirement.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Speical specifications can be produced as your requirements, if you
are interested in our products, please don't hesitate to contact
us.
