3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface

Anping Baochuan Wire Mesh Products Co., Ltd.
Contact Now
    Buy cheap 3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface from wholesalers

    Buy cheap 3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface from wholesalers
    • Buy cheap 3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface from wholesalers
    • Buy cheap 3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface from wholesalers
    • Buy cheap 3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface from wholesalers
    • Buy cheap 3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface from wholesalers

    3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface

    Ask Lasest Price
    Brand Name : Baochuan
    Model Number : FACLM-001
    Certification : ISO SGS
    Payment Terms : Western Union, L/C, T/T,Paypal
    Supply Ability : 20 sets per month
    Delivery Time : 15 working days
    Price : negotiable
    • Product Details
    • Company Profile

    3-6M Width Chain Link Machine Iron Net Making Machine Black / Paint Surface

    3-6M Width Fully Automic Chain Link Fence Mesh Fenceing Weavon Machine with CE​

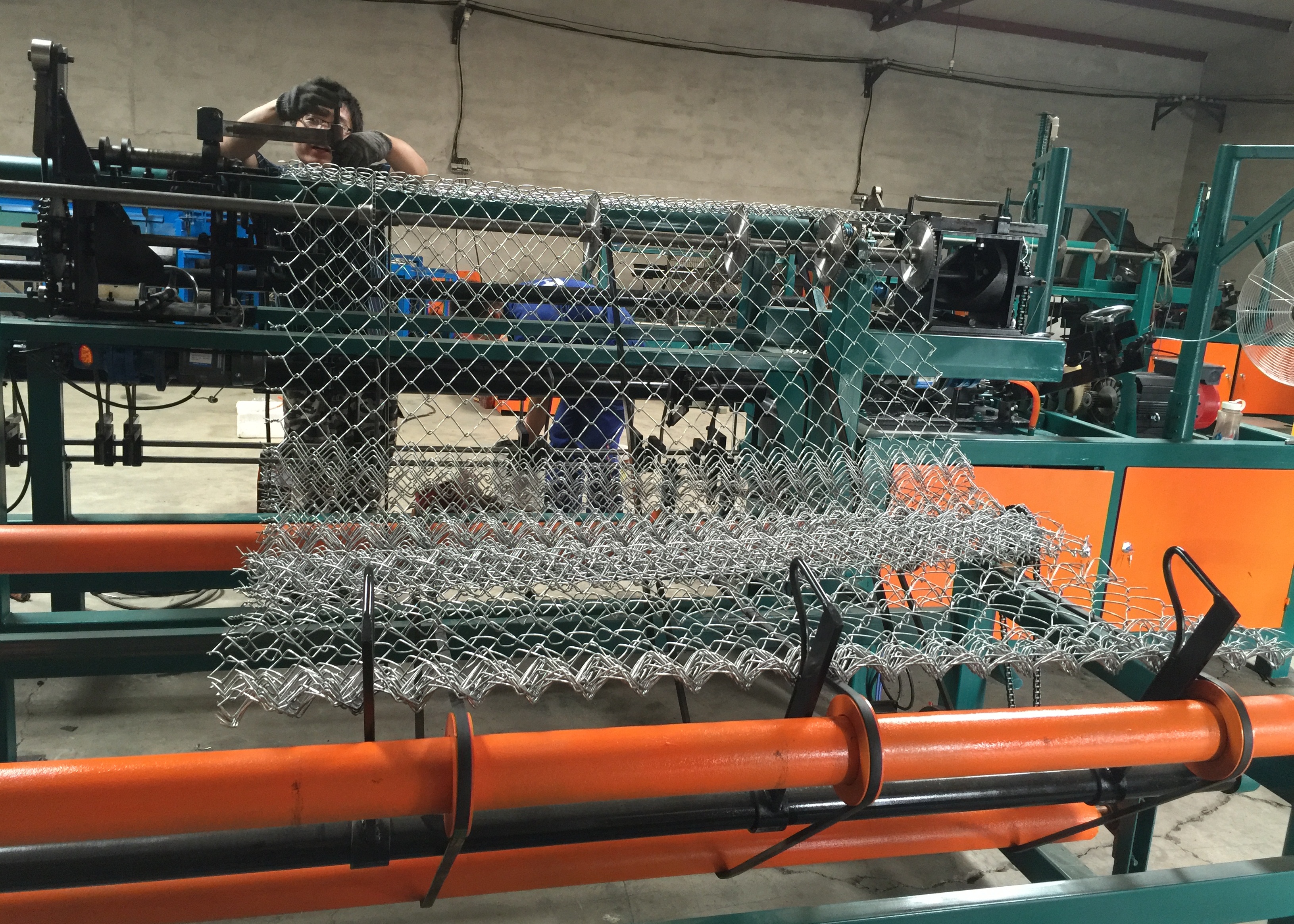

    Description: Baochuan Full automatic diamond wire mesh machine,The diamond wire mesh machine use the principle of bionics.It is the integration of machinery, digital control and aero dynamic.Simulating cross the mesh by hand.Automatically overlock and wrap the mesh.


    Specifications of Fully Automatic Chain Link Machine:

    Capacity80-120(m2/hour)
    Wire Diameter2.2mm-4mm Feeding Wire Numbers: two
    (Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F
    Size of Mesh40X40-100X100(mm)
    Netting Width600-4000(mm)
    Power3.0/KW1set 4.0/KW1 set 0.12/KW 1set
    DiamensionL*W*H6500mm×4500mm×2500mm

    Baochuan

    Double Wire

    Chain Link Fencing Machine

    Single Wire

    Chain Link Fencing Machine

    Wire Diameter(mm)1.8-4.51.5-4.5
    Opening Size(mm)30-11020-100
    Weaving Width(mm)500-4000600-4000
    Max Speed(r/min)1900800
    Weight(kg)18004000
    Outside Size(mm)5800×2200×17004900×4500×2500

    Feature Advantage:

    1. The production efficiency is about twice of the same species.

    2. The fault is the lowest in the same species.

    3. The machine is easy and simple to handle.

    4. The loss of the raw materials of the same species is 5%-7%, while the JL-2000 diamond wire mesh machine is nearly zero.


    Competitive Advantage:

    1. All the parts of netting sheet cutting machine are processed by our own factory; no parts were sending to outside to process, so the quality can be ensured.

    2. We can provide 12 months guarantee for all the equipments, and if customer need, we will arrange our

    technician to help install the machines in your country, and also could supply all the spare parts with cost

    price if customer need.


    FAQ:

    Q1:Your price is too high, could you give me some discounts?


    Machine is not like other products, if one machine can running well, not only need the parts like motor, mould well, but also need the parts cooperate well. Our machine can make it. Choose our machine means choosing save work efficiency in your work.


    Q2:What kind of quality control do you have?

    A:All products have go though 4 checks during the production process and have to pass strict inspection before they go out. Besides, we have our own quality control department. Moreover, we welcome you send the third pary to check the qality, or you can come to our factory to check by yourself. The quality is perfact.

    Q3:Whats your terms of packaging?

    A:1.Wrapped with waterproof paper.

    2.Standard in pallet and plastic film or according to customers’ requirement.

    Q4. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery. Moreover, we will show to our customer testing video before sending the machine to the customer.


    Speical specifications can be produced as your requirements, if you are interested in our products, please don't hesitate to contact us.
