PLC Fully Automatic Diamond Wire Mesh Chain Link Fence Making
Machine
Introduction:
The use of a machine, the scope and characteristics of the
application:
Full-automatic hook chain link fence machine is the use of special
equipment for domestic metal wire metal production huangtongwang,
also known as diamond netting machine, supporting net for mining
machine, anchor net machine, grille machine network, netting
machine. Applicable to various types of steel wire, stainless steel
wire, aluminum alloy wire, PVC wire, spray silk as raw material
huangtongwang weaving production, with uniform mesh, net surface
smooth, elegant, web width to adapt to the tune, weaving simple,
beautiful and practical, wire diameter, pore size range of large
scale.

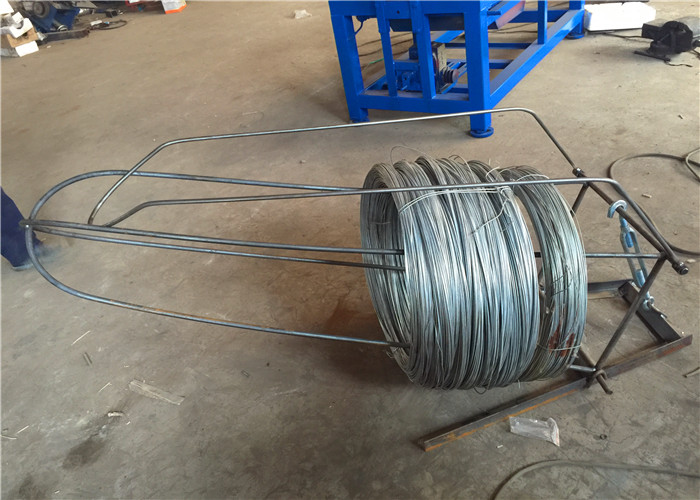

Suitable wire to the machine:
High-quality low carbon steel wire, Galvanized steel wire,Stainless
steel wire, Aluminum alloy wire, Aluminum-clad steel wire.
Technical Parameters
| Product Name | Automatic Chain Link Fence Machine |
| Function | Chain Link Fencing is extensively used as fences for playground and
gardens, super highway, railway, airport, port, residence, etc. |
| Wire Diameter(mm) | 1.4-4.0mm Feeding Wire numbers:two(Note:Steel Wire
Standard:GB3081-82) |
| Mesh Size(mm) | 25x25-100x100 |
| Netting width(mm) | 600--4000 |
| Capacity(m2/hour) | 60-120 |
| Rated Voltage | 380V,50HZ |
| Motor Power | 9.0KW |
| Weight (T) | 4.2 |
| Outside Size | 7000*1430* 1800mm, 5000*1700* 1250mm |
| Advantage | Automatic edge wrap and rolling, easy handle |
| Accessories | Operation tools 1 set Operation manual 1PCS Operation CD video 1PCS |
Main structure:
This machine is mainly composed of power transmission, twine
forming, woven mesh, coolant supply, shear, mesh positioning, net
device, serging device, electrical control multiple system and
devices.
2, working principle:
By the motor drive, consists of a triangular belt to lose power to
the electromagnetic clutch brake, an electromagnetic clutch brake
driven mold rotating guide, in the forming of spiral surface
forcing, wire forming mesh (rotating cooling system lubrication of
mould), also through the mesh pipe forming woven into mesh and
netting system the forming mesh to pull delivery to serging device
of automatic sewing, a completion of the process of the machine
automatic cycle.
Competitive Advantage:
1. We have more than 12 years of experience producing chain link
machine. The machine can running very well.
2. You can use our machine directly once you get electricity. No
need to connect wires or adjust the machine. Which can save your
time and overseas service cost.
3. We use Servo Motor on the machine. As result, the machine can
running very fast and lso you can adjust many things through the
PLC.
FAQ:
Q1:Your price is too high, could you give me some discounts?
A:1.If you take the quality into account, you will find our price
is reasonable.
2.If your order is big enough, we will give you some discounts,
say,5% discount.
3.In order to establish long-term trade relations with you, we are
willing to make a concession give you 5% discount.
Q2:What kind of quality control do you have?
A:All products have go though 4 checks during the production
process and have to pass strict inspection before they go out.
Besides, we set up our quality control department.
Q3:What’s your terms of packaging?
A:1.Wrapped with waterproof paper, with metal or wood pallet
2.Standard in pallet and plastic film or according to customers’
requirement.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Speical specifications can be produced as your requirements, if you
are interested in our products, please don't hesitate to contact
us.
